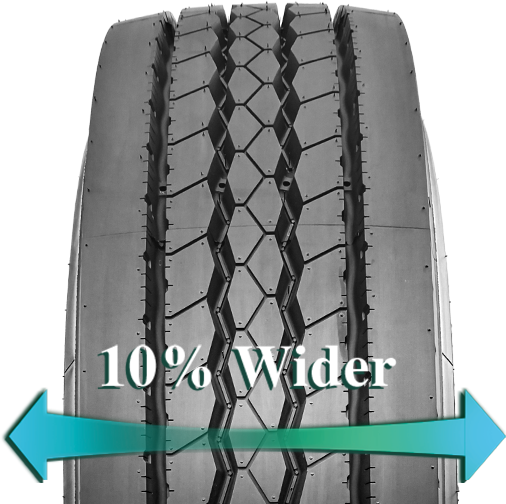

Super wide tread width and deep grooves offersmooth drive and safe arrival.

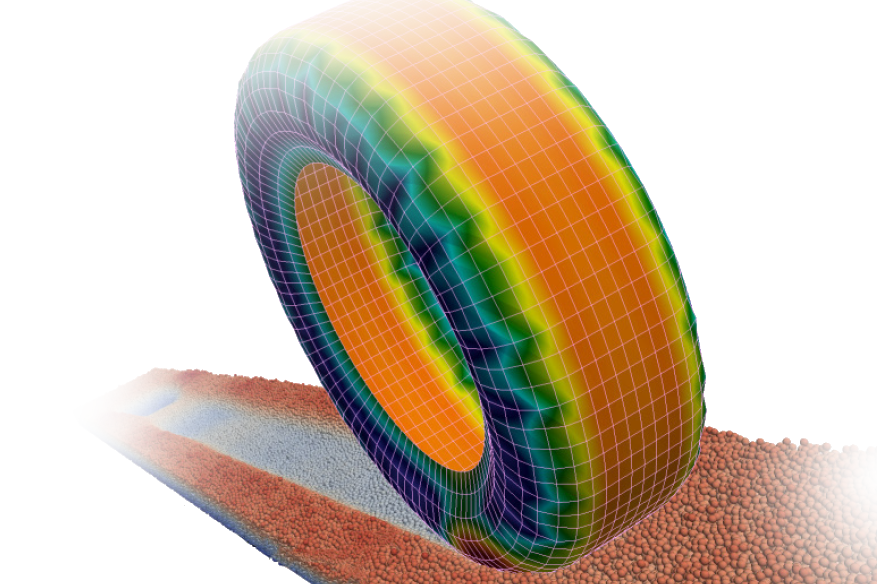

The FEA (Finite Element Analysis)design fullyoptimizes the tire structure, effectively reduces therolling resistance and saves fuel consumption.
The Miniature sipes on the groove edge cab makeyour driving safe and comfort.
Super wide tread width and deep grooves offersmooth drive and safe arrival.
The FEA (Finite Element Analysis)design fullyoptimizes the tire structure, effectively reduces therolling resistance and saves fuel consumption.
The Miniature sipes on the groove edge cab makeyour driving safe and comfort.
| INCH | SIZE | PR/LR | LOAD INDEX/SPEED CODE | STANDARD RIM | OVERALL DIA | SECTION WIDTH | LOAD | PRESSURE | O.T.D | TT/TL |
| 17.5 | 215/75R17.5 | 16 / H | 135/133 L | 6.00 | 767 / 30.2 | 211 / 8.3 | 2180/2060 | 850 / 123 | 13 / 16.4 | TL |
| 17.5 | 235/75R17.5 | 18 / J | 143/141 L | 6.75 | 797 / 31.4 | 233 / 9.2 | 2725/2575 | 875 / 127 | 13 / 16.4 | TL |
| 17.5 | 245/70R17.5 | 18 / J | 143/141 K | 7.50 | 789 / 31.1 | 248 / 9.8 | 2725/2575 | 900 / 130 | 13 / 16.4 | TL |
| 19.5 | 245/70R19.5 | 18 / J | 141/140 M | 7.50 | 839 / 33.0 | 248 / 9.8 | 2575/2500 | 850 / 123 | 14.5 / 18.3 | TL |
| 22.5 | 255/70R22.5 | 16 / H | 140/137 M | 7.50 | 930 / 36.6 | 255 / 10.0 | 2500/2300 | 825 / 120 | 14.5 / 18.3 | TL |
