E-3/L-3
Radial Off-the-road Tyre
Construction BIAS

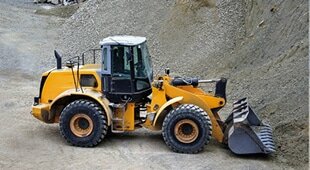

Service Loader and Earthmover Service
Strong tyre casing offers strength needed in aloader application.
Suitable for rocky or gravel surface in mines, quarriesand construction sites.
Solid performance and maneuverability on wet, softor muddy surface.
| Size | Ply rating | TRA code | Rim | Section width (mm) | Overall diamter (mm) | Tread depth (mm) | 10km/h | 50km/h | Type | ||
| Load capacity（kg） | Inflation pressure（kPa） | Load capacity（kg） | Inflation pressure（kPa） | ||||||||
| 16/70-20 | 14 | L-3 | 13(SDC) | 410 | 1075 | 17 | 5150 | 450 | 2900 | 350 | TT |
| 15.5-25 | 12 | E-3/L-3 | 12.00/1.3 | 395 | 1275 | 25 | 5600 | 400 | 3250 | 250 | TL |
| 17.5-25 | 12 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 6150 | 350 | 3650 | 225 | TL/TT |
| 17.5-25 | 16 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 7300 | 475 | 4250 | 300 | TL/TT |
| 17.5-25 | 20 | E-3/L-3 | 14.00/1.5 | 445 | 1350 | 25.5 | 8250 | 575 | 5000 | 400 | TL/TT |
| 20.5-25 | 16 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 8250 | 350 | 5450 | 275 | TL/TT |
| 20.5-25 | 20 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 9500 | 450 | 6000 | 325 | TL/TT |
| 20.5-25 | 24 | E-3/L-3 | 17.00/2.0 | 520 | 1490 | 28.5 | 10300 | 525 | 6700 | 400 | TL/TT |
| 23.5-25 | 16 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 9500 | 300 | 6150 | 225 | TL/TT |
| 23.5-25 | 18 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 10500 | 350 | 6700 | 275 | TT |
| 23.5-25 | 20 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 10900 | 375 | 7300 | 300 | TL/TT |
| 23.5-25 | 24 | E-3/L-3 | 19.50/2.5 | 595 | 1615 | 31.5 | 12500 | 475 | 8000 | 350 | TL/TT |
| 26.5-25 | 20 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 13200 | 350 | 8250 | 250 | TT |
| 26.5-25 | 24 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 14000 | 400 | 9250 | 300 | TL/TT |
| 26.5-25 | 28 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 15500 | 475 | 10000 | 350 | TL/TT |
| 26.5-25 | 36 | E-3/L-3 | 22.00/3.0 | 675 | 1750 | 35 | 20000 | 725 | TT | ||
| 29.5-25 | 28 | E-3/L-3 | 25.00/3.5 | 750 | 1875 | 40 | 17500 | 425 | 11500 | 325 | TL |
